Vertical External Vacuum Packaging Machine XT-700B / 800B / 900B / 1000B

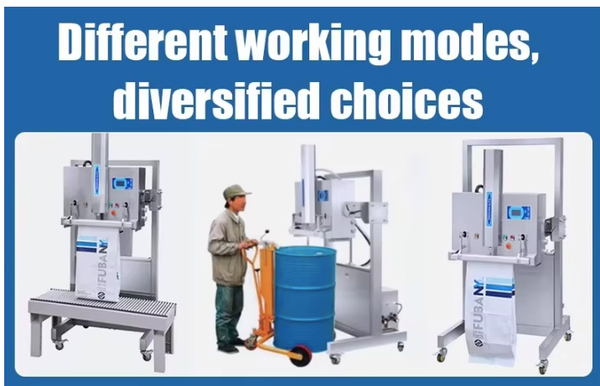

A mid-to-large industrial-grade external vacuum sealer designed for upright, fully-filled bags of powder, granules, or heavy/bulky products that cannot lie flat. The vacuum nozzle faces downward — ideal for standing bags. Ultra-fast vacuuming, simple one-touch operation, CE certified.
🎬 See It In Action — Real Machine Demo Videos
We provide full operation and testing videos for every model so you can see the vacuum performance before you buy.
- 📹 Welcome to send us your sample bags — we will film a real vacuum test video with your actual product and packaging material, so you can verify the sealing effect before placing an order.
- 📩 Contact us to request demo videos or arrange a sample test.
🎯 Who Is This Machine For?
Perfect for packaging flour, coffee, spices, chemicals, seeds, hardware, pharmaceuticals, and semiconductors — any product that is upright, heavy, or too bulky to lie flat during sealing.
⚙️ Working Modes (5-in-1)
- Seal only
- Manual vacuum + seal
- Auto vacuum + seal
- Vacuum + gas filling + seal
- Vacuum + gas filling + vacuum + seal (double vacuum)
💡 Save and recall multiple modes — one button auto-completes all operations.
🔑 Key Features & Advantages
| Feature | Benefit |
|---|---|
| Industrial-grade vacuum pump | Ultra-fast vacuuming; clean, flat, and firm seals every time |
| Adjustable nozzle length: 0–150 mm | Fits bags of different depths without adjustment hassle |
| Multiple nozzle options | Customizable for your specific product and bag type |

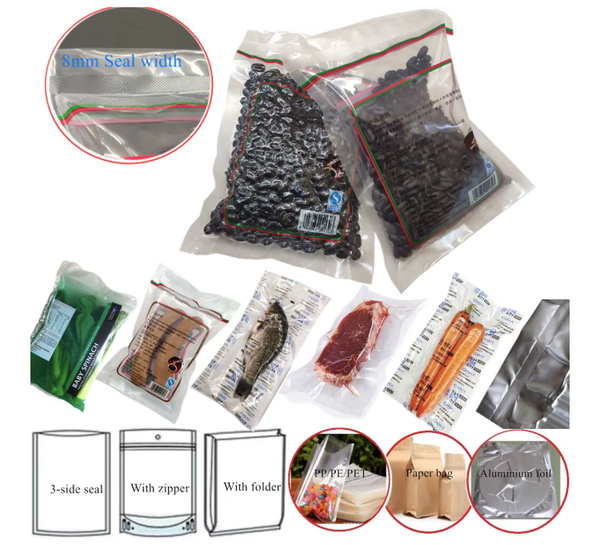

| Universal bag compatibility | Aluminum foil, PE, laminated woven bags — no restriction on material or thickness |
| Inert / mixed gas filling (optional) | CO₂ or N₂ filling for anti-oxidation, anti-corrosion, and freshness preservation |
| Adjustable work table height | Accommodates products of different heights — no extra fixtures needed |
| Body: painted metal or stainless steel | Choose finish to match your production environment |
| Vacuum pump: selectable capacity & brand | Tailor performance to your throughput requirements |
📐 Technical Specifications
| Parameter | XT-700B | XT-800B | XT-900B | XT-1000B |
|---|---|---|---|---|
| Machine Dimensions (mm) | 760×650×1760 | 860×650×1760 | 960×650×1760 | 1060×650×1760 |
| Effective Seal Width (mm) | 700×10 | 800×10 | 900×10 | 1000×10 |
| Seal Height from Floor (mm) | 1200 | 1200 | 1200 | 1200 |
| Vacuum Pump Capacity (m³/h) | 20 | 20 | 20 | 20 |
| Total Power (kW) | 2.0 | 2.0 | 2.0 | 2.0 |
| Voltage / Frequency | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |
| Machine Weight (kg) | 120 | 120 | 130 | 130 |
⚡ Voltage & Plug Customization
We support custom voltage and plug configurations for any country:
- ✅ 110V / 60Hz (North America, Japan, Taiwan, etc.)
- ✅ 220V / 50Hz (Europe, Asia, Australia, etc.)
- ✅ Country-specific plug types available (US, EU, UK, AU, and more)
Please specify your required voltage and plug type when requesting a quote.
🚢 Shipping & Trade Terms
We offer flexible international trade terms to suit your import requirements:
EXW | FOB | CIF | CFR | DAP | DDP
Our team handles export documentation, customs clearance support, and freight coordination. Just tell us your destination port or address and we will provide a full landed cost quote.
🏭 Standalone Machine or Full Production Line Integration
This machine works perfectly as a standalone unit, and can also be integrated into your existing production line.
- We provide line retrofit and integration services — connecting the vacuum sealer with conveyors, filling machines, labelers, and other equipment.
- 📨 Send us your full production line requirements and we will design a customized solution for you.
🛡️ Safety & Compliance
- ✅ CE certified — meets EU and US standards
- ✅ Anti-pinch hand protection device
- ✅ Prominent safety indicators

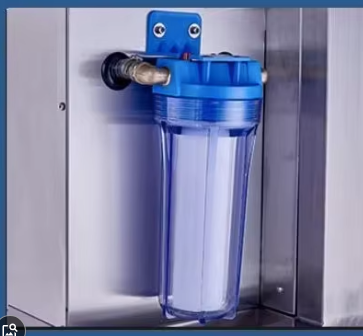

- ✅ Built-in dust filter (upgradeable to heavy-duty filter)
- ✅ Oil-water separator included
- ✅ Easy maintenance: only vacuum pump oil replacement required
📦 Included Accessories
- 1 roll of high-temperature PTFE (Teflon) sealing tape — replaceable when worn
- Lifetime supply of optional accessories: high-temperature silicone strips, spare nozzles, etc.
📩 Request a Custom Quote
Every machine is built to order. To get an accurate quote fast, please share:
- 📦 Product type & bag size
- ⚡ Required voltage & plug type (110V 60Hz / 220V 50Hz / other)
- 🔧 Preferred vacuum pump brand / capacity
- 💨 Gas filling requirements (CO₂, N₂, or mixed gas — if needed)
- 🏭 Company name & monthly production volume
- 🚢 Delivery address / destination port & preferred trade term
- 🔗 Full production line requirements (if integration is needed)
👉 Click "Request a Quote" or message us now — we respond within 24 hours.
