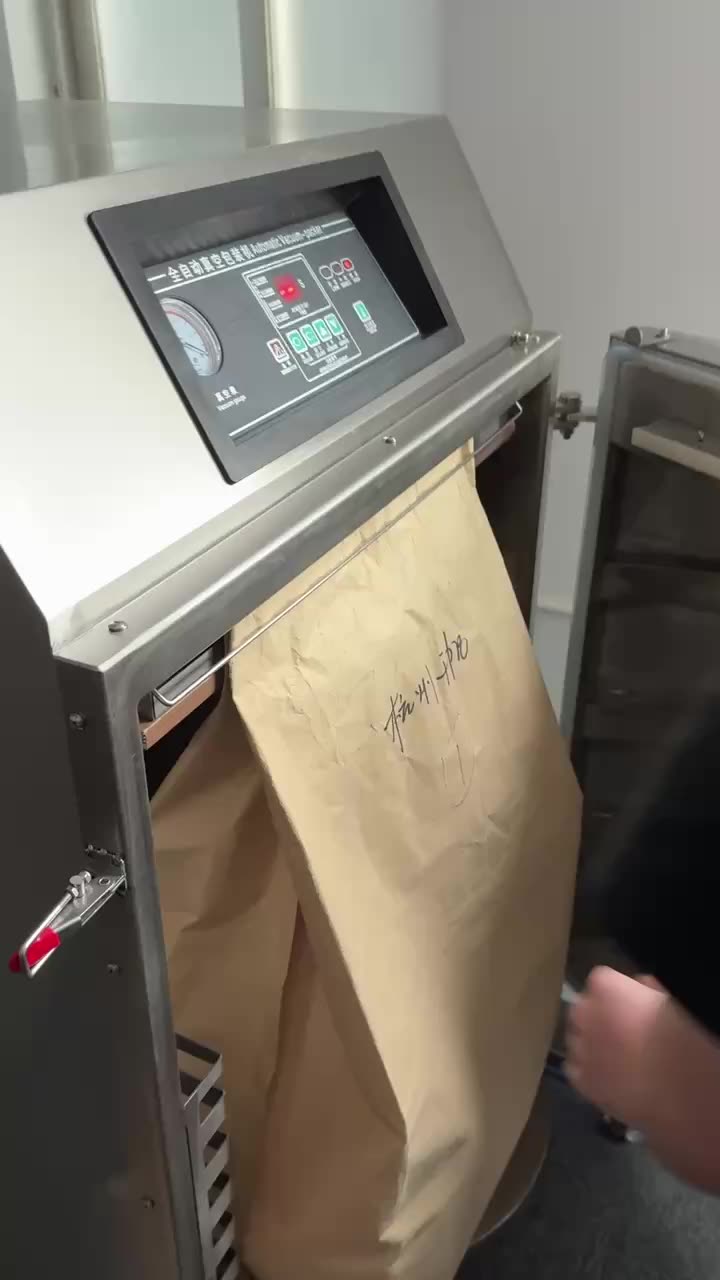

Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine

Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine

$0.00
$0.00
跳到商品資訊
Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
  • Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine
Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine

Round Chamber Vertical External Vacuum Sealer | 10–25 kg Large Bag | Powder, Granule & Paste Packaging Machine

📩 Request a Custom Quote — Reply in 24 Hours
  • ✅ Round Chamber for 10–25kg Large Bags — Vertical design accommodates pre-filled upright bags of powder, granule, and paste materials up to 25kg.
  • 📦 Vacuum + Gas Flush Compatible — Supports nitrogen flushing and MAP packaging. Ideal for chemical, food, and agricultural bulk products.
  • 🔒 Industrial-Grade Seal Integrity — High-power sealing bar with consistent pressure. CE certified, stainless steel construction.
  • ⚡ Compact Footprint, High Output — Efficient vertical layout saves floor space while handling large-format bags at production speed.
  • 🌍 OEM & Custom Voltage — 220V/380V, 50/60Hz. Custom chamber and bar configurations. Reply in 24 hours.
Interested? Get a Quote

Round Chamber High-Power Vacuum Packaging Machine

Engineered for 10–50kg Bulk Bags, Drum Mold Forming & Fine Powder Evacuation

Specially designed for heavy-duty bulk packaging of food ingredients, nuts, and industrial chemical powders. The circular internal vacuum chamber naturally accommodates upright 10kg to 50kg bags and cylindrical forming molds, eliminating corner stress and bag deformation. Featuring high-flow evacuation with an integrated industrial powder filtration system, it safeguards the vacuum pump while delivering clean, airtight, and compact drum-shaped packaging.

10–50kg Packaging Formats – Drum Barrels, Square Blocks, Vacuum Bricks & Retail Pouches

Multi-Format Packaging Flexibility: Compatible with cylindrical drums & barrels, standing square pouches, dense brick-formed blocks, and retail vacuum pouches from 10kg up to 50kg.

📦 Recommended Materials & Compatible Pouch Types

Applicable Products:
Green & Roasted Coffee Beans Cashews, Almonds & Peanuts Rolled Oats & Bulk Grains Dry Beans & Legumes Chemical & Pharmaceutical Powders Bulk Food Ingredients
Compatible Bag Types:
Heavy-Duty PE Bags Kraft Paper Foil Laminate Bags Large PP Woven Lined Pouches Multi-Layer Heat-Sealable Composite Bags

⚡ Core Engineering Features

1. Round Chamber for 10–50kg & Drum Molds
Specifically engineered for pre-filled standing bags (10–50kg). Naturally forms tight cylindrical packs and seamlessly integrates with round shaping molds.
2. One-Touch Automated Operation
Intuitive digital controls. Preset vacuum duration, heat seal time, and shaping hold time; simply close the chamber lid to execute the full automated cycle.
3. Universal Packaging Film Compatibility
Versatile high-output sealing bar supports any heat-sealable composite material, barrier nylon laminate, aluminum foil, or heavy-duty plastic pouch.
4. High Capacity & Customizable Chamber
Generous internal volume for oversized pouches. Chamber diameter, usable height, and sealing bar dimensions can be custom-built to your specs.
5. Tailored Pump Capacity (20–120 m³/h)
Configurable with premium domestic or German-engineered vacuum pumps. Capacities available from 20, 40, 60, 80, 100, up to 120 m³/h for rapid cycles.
6. Heavy-Duty Powder Filtration Unit
Integrated high-efficiency filter traps micro-dust and airborne particulates during deep evacuation, protecting the vacuum pump from clogs and wear.

📋 Custom Engineering & Quote Checklist

To configure the optimal chamber diameter, sealing bar length, and vacuum pump flow rate for your production line, please specify:

1. Packaging Weight & Container Type
Standard 10kg, 20kg, 25kg, or 50kg bag; drum barrel; or round forming mold.
2. Product Type & Dust Level
Solid nuts/beans, free-flowing grains, or fine powders requiring high filtration.
3. Pouch Material & Dimensions
Film type (PE, kraft, foil, woven) plus bag height and seal width.
4. Vacuum Pump Preference
Flow rate (20/40/60/80/100/120 m³/h) and brand specification (domestic or German).

Core Features & Advantages

Inline Dust & Powder Filtration System

Inline Dust & Powder Filtration System

Positioned directly upstream of the vacuum pump to intercept fine airborne particulates, chemical powders, and food dust during rapid evacuation, effectively safeguarding the vacuum pump against clogging and premature wear.

PLC Touchscreen & Emergency Safety System

PLC Touchscreen & Emergency Safety System

Intuitive touchscreen interface allows operators to precisely program vacuum duration, heat seal timing, and cooling cycles with recipe recall. Integrated with an emergency stop push-button for safe setup, rapid adjustments, and protected operation.

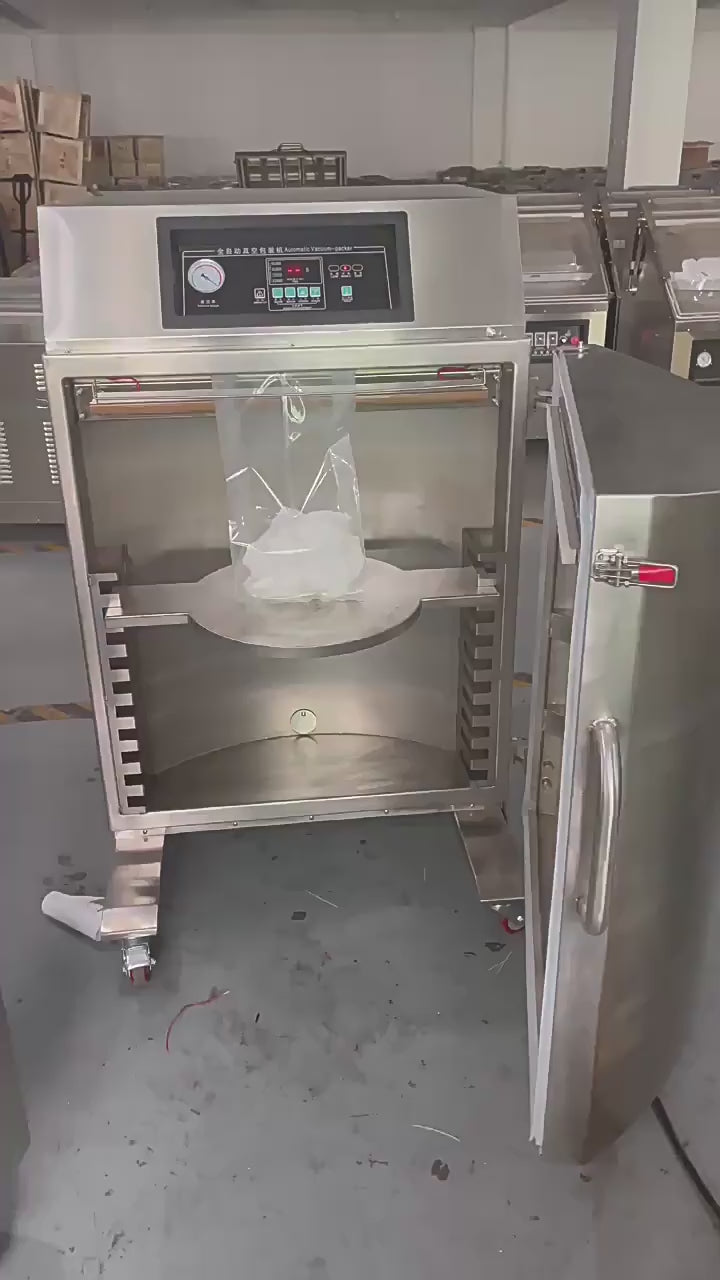

Adjustable Height Bag Support Baffle

Adjustable Height Bag Support Baffle

The internal support baffle features flexible height adjustment to perfectly adapt to varying pouch heights and fill levels (10kg to 50kg), ensuring upright stability and clean hermetic seal alignment.

Cylindrical Drum Mold & Direct Vacuum Shaping

Cylindrical Drum Mold & Direct Vacuum Shaping

Accommodates custom cylindrical forming molds or allows pre-filled bulk bags to be drawn directly into tight, uniform cylinder packs—ideal for drum packaging, space-saving pallet stacking, and heavy-duty transport.

Looking for Custom Tray Molds or Turnkey Packaging Consumables?

Send us your tray sample dimensions or CAD drawings (L × W × H) and daily output targets. Contact our engineering team today for custom tooling layout and a direct factory quotation!

Request a quote

Technical Specifications

Sealing Modes

Vacuum sealing, nitrogen flushing (N₂ purge), MAP (Modified Atmosphere Packaging), and heat sealing. All modes available in a single machine.
Maximum Bag Capacity

Up to 25kg per bag. Compatible with large-format pre-filled bags for powder, granule, grain, and chemical materials.
Chamber Material

Food-grade stainless steel (SUS304), precision-welded. Suitable for food, pharmaceutical, and chemical applications.
你們的產品在哪裡製造？

我們的產品在本地與海外製造。我們嚴選製造合作夥伴，確保品質優良、價格合理。
Power Supply

220V/380V, 50Hz/60Hz. Custom voltage configurations available for international markets.
