Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging

Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging

$0.00
$0.00
跳到商品資訊
Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
  • Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging
Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging

Continuous Rotary Vacuum Sealer Machine | Multi-Bag High-Speed Food Packaging

📩 Request a Custom Quote — Reply in 24 Hours
  • ✅ Continuous Rotary Conveyor Design — Automatic indexing conveyor delivers non-stop continuous sealing without downtime. Ideal for high-output industrial food processing lines.
  • 📦 Multi-Bag Simultaneous Processing — Parallel pouch arrangement across the wide 1100 mm sealing bar maximizes cycle capacity for meat, seafood, deli, and snack packaging.
  • 🔒 Consistent Vacuum & Minimal Downtime — Rotary indexing mechanism eliminates idle time between cycles. Built with food-grade SUS304 stainless steel and CE certified.
  • ⚡ Intelligent PLC Touchscreen Automation — Programmable digital control over vacuum level, sealing duration, conveyor speed, and temperature with minimal operator intervention.
  • 🌍 Factory-Direct OEM & Custom Configurations — 220V/380V, 50/60Hz voltage customization. Custom chamber depths, seal widths, and private label branding available. Lead time 10–20 days.
Interested? Get a Quote

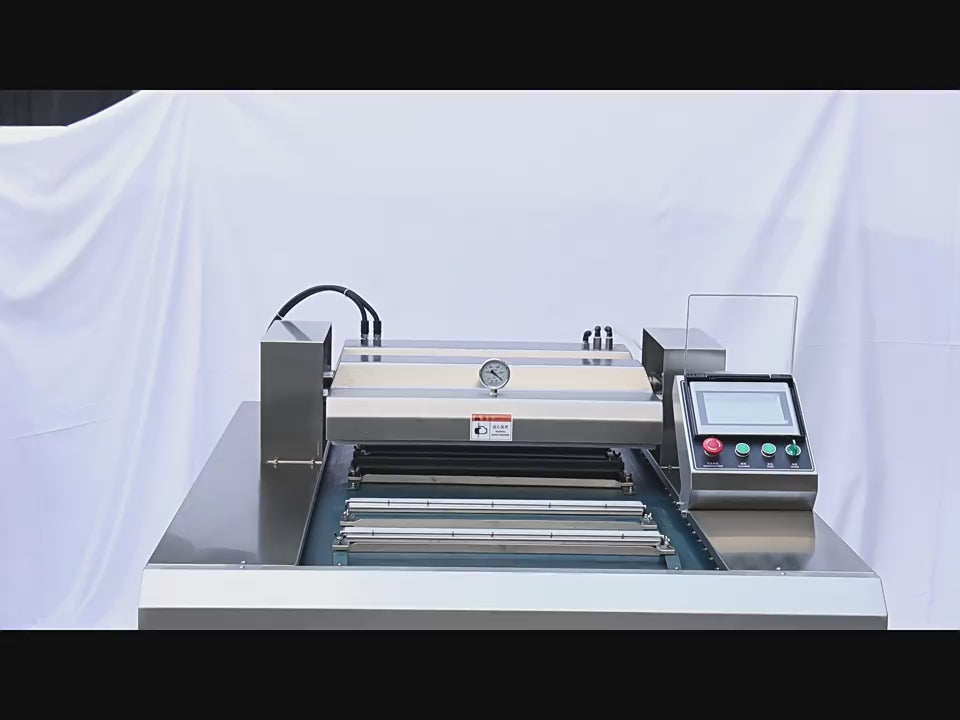

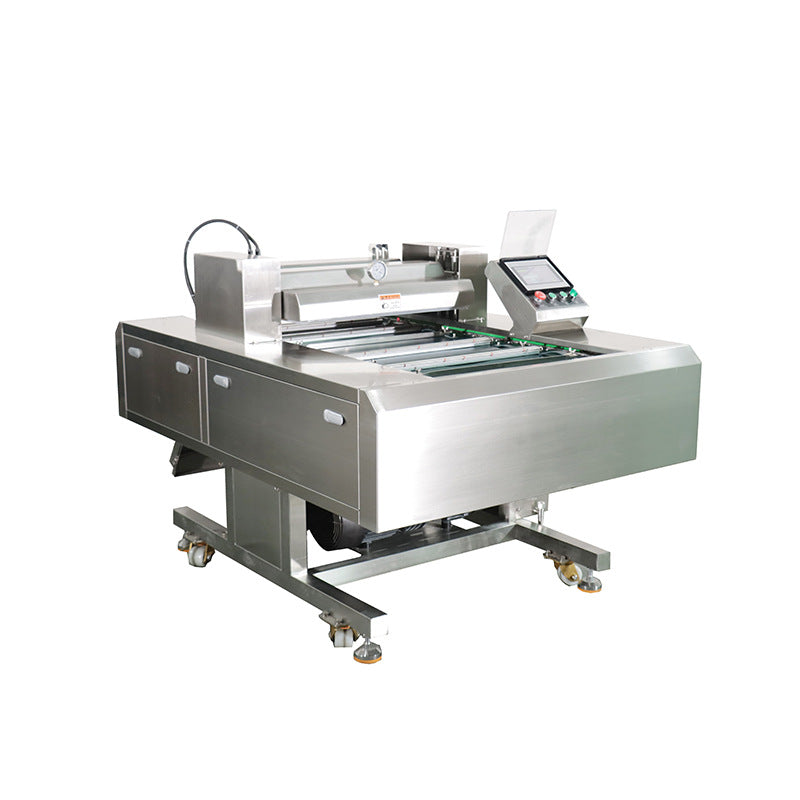

DZ-1100 Continuous Belt Type Vacuum Packaging System

The Premier Choice for High-Volume Snack & Small Pouch Packaging

Engineered for industrial high-efficiency small-bag food packaging—ideal for dried snacks, beef jerky, retail seafood pouches, and marinated delicacies. The continuous conveyor belt enables multi-row pouch loading and non-stop sealing cycles, dramatically boosting daily throughput. Features an integrated 30° tiltable conveyor worktable to package liquid-rich and juicy products securely without spillage.

DZ-1100 Continuous Vacuum Sealer with 30 Degree Tiltable Worktable

Automated Continuous Operation: Operators simply position filled pouches across the conveyor—the machine automatically executes deep vacuum evacuation, precision hermetic sealing, and smooth conveyor discharge for uninterrupted industrial output.

Core Engineering Advantages

✔ Full SUS304 Stainless Steel Complete food-grade sanitary build for harsh washdown environments.
✔ CE Certified Meets rigorous European industrial safety and electrical compliance standards.
✔ 30° Tiltable Worktable Adjustable conveyor tilt angle keeps liquids and marinades securely inside the pouch.
✔ IP65 Waterproof Control Box Sealed protection guards electrical components against moisture and dust.
✔ 40+ Years Manufacturing Expertise Decades of specialized engineering ensure dependable performance.
✔ Non-Stop Continuous Output Automated belt indexing delivers consistent, uninterrupted cycle times.
✔ Abundant Spare Parts Stock Comprehensive inventory available for immediate dispatch to minimize downtime.
✔ 100 m³/h Heavy-Duty Pump 3000W industrial vacuum pump ensures rapid evacuation and deep, reliable vacuum.
✔ Easy Operation & Sanitation User-friendly controls with quick-release conveyor belt for fast daily cleaning.
✔ Broad Pouch Compatibility Handles multi-layer barrier bags, vacuum skin film, foil laminates, and retort pouches.
✔ Dedicated Video Tutorials Every unit comes with detailed operational and preventative maintenance videos.
✔ OEM & Custom Engineering Tailored sealing bar layouts, chamber depths, and voltages upon request.

DZ-1100 Technical Specifications

Chamber Material
Food-Grade SUS304 Stainless Steel
Power Supply Voltage
AC 380V / 50Hz (Customizable)
Machine Size (L*W*H)
1950 × 1630 × 1120 mm
Vacuum Pump Motor Power
3000 W (3.0 kW)
Vacuum Pump Rate
100 m³/h High-Capacity Pump
Vacuum Chamber Dimension
1100 × 470 × 80 mm
Heat Sealing Bar Length
1100 × 8 mm (Double Sealed)
Max Packaging Length/Height
180 mm / 80 mm
Max Packaging Bag Length
230 mm

Machine Structure & Component Breakdown

Precision engineering overview featuring PLC touchscreen control, vacuum gauge monitoring, and reinforced sanitary conveyor frame.

DZ-1100 Continuous Vacuum Packaging Machine Structure Diagram

Core Features & Advantages

Food-Grade Stainless Steel

Food-Grade Stainless Steel

All product-contact surfaces and vacuum chambers are constructed from food-grade stainless steel, ensuring strict hygiene, food safety compliance, and long-lasting corrosion resistance.

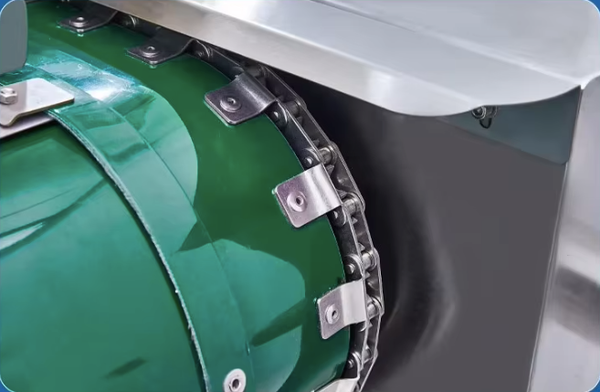

Adjustable Sealing Bar Spacing

Adjustable Sealing Bar Spacing

The distance between sealing bars is easily adjustable to accommodate diverse pouch lengths and packaging dimensions, maximizing line flexibility for various product sizes.

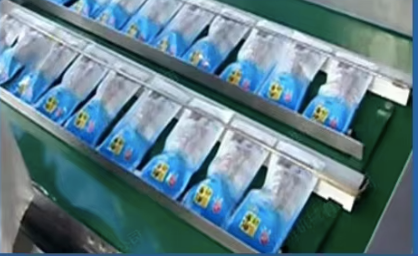

Simultaneous Loading & Continuous Sealing

Simultaneous Loading & Continuous Sealing

Supports multi-row pouch arrangement, allowing operators to continuously load pouches while the chamber simultaneously vacuums and seals, delivering non-stop, high-speed operational efficiency.

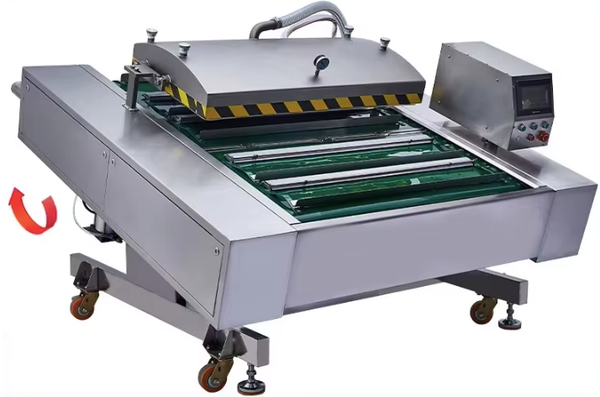

30° Tiltable Conveyor Worktable

30° Tiltable Conveyor Worktable

The conveyor platform features an adjustable tilt angle (up to 30°), making it ideal for packaging liquid-rich products, soups, sauces, and marinated meats without spillage or seal area contamination.

Looking for Custom Tray Molds or Turnkey Packaging Consumables?

Send us your tray sample dimensions or CAD drawings (L × W × H) and daily output targets. Contact our engineering team today for custom tooling layout and a direct factory quotation!

Request a quote

Technical Specifications

Sealing Modes

Vacuum sealing, nitrogen flushing (N₂ purge), MAP (Modified Atmosphere Packaging), and heat sealing. All modes available in a single machine.
Maximum Bag Capacity

Up to 25kg per bag. Compatible with large-format pre-filled bags for powder, granule, grain, and chemical materials.
Chamber Material

Food-grade stainless steel (SUS304), precision-welded. Suitable for food, pharmaceutical, and chemical applications.
你們的產品在哪裡製造？

我們的產品在本地與海外製造。我們嚴選製造合作夥伴，確保品質優良、價格合理。
Power Supply

220V/380V, 50Hz/60Hz. Custom voltage configurations available for international markets.
